HONDA WIRING EXPLANATION FOR MONKEY
DOUNLOAD AS PDF FILE
COLOR CHART AC
/ DC		 ELECTRODE EXPLANATION
RED DC + ENDURANCE POWER SUPPLY. BETWEEN REGULATE -RECTIFIRE, BATTERY AND MAIN SWITCH.
BLACK DC + THROUGH MAIN SWITCH (RED WIRING) ELECTRIFY.
0 0 NOTICE: POINT SYSTEM IGNITION IS USING SOMETIMES SAME MEAN AS BLACK/WHITE.
GREEN DC - GROUND
0 0 NOTICE: OLD BIKES WERE USING IT BETWEEN STATOR AND REGULATOR. IN THIS CASE IT IS NOT GROUND AND USING AS AC.
YELLOW AC 0 AC POWER SUPPLY. IT IS USING BETWEEN STATOR AND HEAD LIGHT SWITCH. THE YELLOW WIRING SOMETIMES DIVERGE TO REGULATER TO MAKE DC POWER SUPPLY.
PINK AC 0 2X 12V GENETATOR SYSTEM WIRING. IT IS USING TO RECTIFIRE AND/OR REGULATE RECTIFIRE.
DC + BETWEEN SPEED WARING UNIT AND WARNING LAMP (LED) WIRING.
PINK / WHITE DC - BETWEEN SPEED WARING UNIT AND WARNING LAMP (LED) WIRING.
BLACK / WHITE DC 0 BETWEEN CDI, MAIN SWITCH AND KILL SWITCH WIRING.
0 0 POINT MODEL: BETWEEN IGNITION COIL AND MAIN SWITCH.
BLACK / RED 0 0 BETWEEN GENERATOR AND CDI WIRING.
BLACK / YELLOW DC + BETWEEN CDI AND IGNITION COIL WIRING.
BLUE / YELLOW 0 0 IGNITION PULSE WIRING. IT IS USING BETWEEN PICK UP COIL AND CDI.
BLUE DC + HEAD LIGHT HIGH BEAM WIRING.
DC - NOTICE: OLD MODELS WERE SUING IT BETWEEN BATTERY AND MAIN SWITCH AS MINUS.
0 0 NOTICE: SOME OLD MODELS WERE UNING IT BETWEEN POINT AND IGNITION COIL.
WHITE DC + HEAD LIGHT LOW BEAM WIRING.
AC 0 BETWEEN AC-REGULATOR AND REGULATE RECTIFIRE WIRING.
WHITE / YELLOW DC + HEAD LIGHT POWER SUPPLY.
BLUE / WHITE DC + BETWEEN HEAD LIGHT ON AND HEAD LIGHT OFF.
RED / WHITE DC + BETWEEN MAIN SWITCH AND NEUTRAL PILOT LAMP.
BROWN DC + SPEED METER LIGHING WIRING. ON/OFF IS CONTROLLED BY LIGHT-SWITCH. NOTICE: OLD MODELS ARE USING SOMETIMES TO TAIL LAMP.
BROWN / RED 0 0 BETWEEN SPEED METER (SPEED COUNTER) AND SPEED WARING UNIT.
GREEN / YELLOW DC + BRAKE LAMP WIRING. FRONT AND REAR.
GREEN / WHITE DC + BETWEEN CDI AND SIDESTAND KILL SWITCH AND DIODE WIRING.
GREY DC + WINKER RELEY AND WINKER SWITCH WIRING.
GREY / WHITE DC + WINKER RELEY AND WINKER SWITCH WIRING.
LIGHT-BLUE DC + WINKER RIGHT WIRING.
ORANGE DC + WINKER LEFT WIRING.
LIGHT-BLUE / WHITE DC + WINKER RIGHT WIRING.
ORANGE / WHITE DC + WINKER LEFT WIRING.
LIGHT-GREEN DC + HORN WIRING.
LIGHT-GREEN / RED DC - NEUTRAL WIRING. IT IS USING BETWEEN NEUTRAL SWITCH AND NEUTRAL LAMP.
Engine Specification
Without guaranty / ohne Gewaehr
Model Honda
Moneky Z50J (AB27)		 Honda

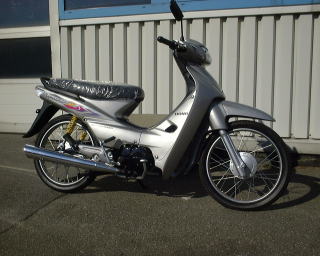

Wave 100		 Honda
Nice 110		 Honda
Nice 125

Engine

 4-Stroke, air-cooled,
overhead camshaft,

4-Stroke, air-cooled,
overhead camshaft,

 4-Stroke, air-cooled,
overhead camshaft,		 4-Stroke, air-cooled,
overhead camshaft,

Displacement

 49.0 cc

97.0 cc

 108.9 cc 124.9 cc

Bore & Stroke

 39.0 x 41.4 mm

50.0 x 49.5 mm

 50.0 x 55.5 mm 52.4 x 57.9 mm
Horse Power 3.1 ps / 7,500 8.70 ps / 7,500 rpm 9.0 ps / 8,000 rpm 9.2 ps / 7,500 rpm

Compression Ratio

 10.0 : 1

9.0 : 1

 9.0 : 1 9.3 : 1

Transmission

 4 gear Manual clutch

4 gear Manual clutch

 4 gear Manual clutch 4 gear Manual clutch

Ignition System

 CDI

CDI

 CDI CDI
Start Kick start Kick start Kick start Kick start
Fuel Unleaded Benzene
Octane >91

Unleaded Benzene
Octane >91

 Unleaded Benzene
Octane >91		 Unleaded Benzene
Octane >91
Wiring Plan
Zum Schaltplan
Wave100
Zum Schaltplan
Nice110
